Herculon Type D Free Float Bearings (HLD/FF)
Type 'D' Steel Bearings
Herculon Type D Free Float Bearings (HLD/FF)
Herculon Type D Free Float Bearings (HLD/FF) have been developed to fulfil the need for a low friction bearing on corbels and columns where a continuous slipjoint is inappropriate. They can be used under beams and slabs and also under pipes, ducts, conveyors, pressure vessels and small span bridges.
Materials
HLD/FF consist of a mild steel top plate to which is attached a polished stainless steel facing plate. This plate slides against a Hercuflon coated Hercupad which in turn is bonded to a mild steel base plate (optional).
Design
The following design limitations are recommended:
• Coefficient of friction: 0.05 - 0.08 (depending on stress)
• Expansion capacity: up to ±30 mm
• Maximum contact stress: 10 MPa
• Maximum rotation: up to 0.02 radians
• Maximum temperature: 80°C
Standard top slide plates have been designed to accommodate up to ±30mm design expansion in the principle direction of movement and ±7.5 mm in transverse direction. If extra expansion or rotation capacity is required please contact our Technical Department.
| Part Number | Maximum Vertical Working Load | Top Plate Dimensions (mm) C x D x H for the Following Expansions: (mm) | Pad Dimensions (mm) G x F x E for the Following Rotations: (rads) | Base Plate Dimensions A x B x J (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| kN | A (±10) | B (±20) | C (±30) | D (0.010) | E (0.015) | F (0.02) | G | |
| HLD/FF 75 HLD/FF 100 HLD/FF 125 HLD/FF 150 HLD/FF 175 HLD/FF200 | 75 100 125 150 175 200 | 95 x 125 x 16 100 x 150 x 16 110 x 165 x 16 125 x 165 x 16 135 x 175 x 16 150 x 175 x 16 | 115 x 125 x 16 120 x 150 x 16 130 x 165 x 16 145 x 165 x 16 155 x 175 x 16 170 x 175 x 16 | 195 x 250 x 16 140 x 150 x 16 150 x 165 x 16 165 x 165 x 16 175 x 175 x 16 190 x 175 x 16 | 70 x 110 x 10 75 x 135 x 10 85 x 150 x 10 100 x 150 x 10 110 x 160 x 10 125 x 160 x 10 | 70 x 110 x 17 75 x 135 x 17 85 x 150 x 17 100 x 150 x 17 110 x 160 x 17 125 x 160 x 17 | 70 x 110 x 17 75 x 135 x 17 85 x 150 x 17 100 x 150 x 23 110 x 160 x 23 125 x 160 x 23 | 85 x 125 x 16 90 x 150 x 16 100 x 165 x 16 115 x 165 x 16 125 x 175 x 16 140 x 175 x 16 |
| HLD/FF 225 HLD/FF 250 HLD/FF 275 HLD/FF 300 HLD/FF 325 HLD/FF 350 | 225 250 275 300 325 350 | 150 x 195 x 16 160 x 205 x 16 165 x 215 x 16 165 x 230 x 16 170 x 240 x 16 175 x 250 x 16 | 170 x 195 x 16 180 x 205 x 16 185 x 215 x 16 185 x 230 x 16 190 x 240 x 16 195 x 250 x 16 | 190 x 195 x 16 200 x 205 x 16 205 x 215 x 16 205 x 230 x 16 210 x 240 x 16 215 x 250 x 16 | 125 x 180 x 10 135 x 190 x 10 140 x 200 x 10 140 x 215 x 10 145 x 225 x 10 150 x 235 x 10 | 125 x 180 x 17 135 x 190 x 17 140 x 200 x 17 140 x 215 x 23 145 x 225 x 23 150 x 235 x 23 | 125 x 180 x 23 135 x 190 x 23 140 x 200 x 23 140 x 215 x 23 145 x 225 x 29 150 x 235 x 29 | 140 x 195 x 16 150 x 205 x 16 155 x 215 x 16 155 x 230 x 16 160 x 240 x 16 165 x 250 x 16 |
| HLD/FF 375 HLD/FF 400 HLD/FF 425 HLD/FF 450 HLD/FF 475 HLD/FF 500 | 375 400 425 450 475 500 | 185 x 255 x 16 185 x 265 x 16 190 x 275 x 16 195 x 285 x 16 200 x 295 x 16 200 x 305 x 16 | 205 x 255 x 16 205 x 265 x 16 210 x 275 x 16 215 x 285 x 16 220 x 295 x 16 220 x 305 x 16 | 225 x 255 x 16 225 x 265 x 16 230 x 275 x 16 235 x 285 x 16 240 x 295 x 16 240 x 305 x 16 | 160 x 240 x 10 160 x 250 x 10 165 x 260 x 17 170 x 270 x 17 175 x 280 x 17 175 x 290 x 17 | 160 x 240 x 23 160 x 250 x 23 165 x 260 x 23 170 x 270 x 23 175 x 280 x 29 175 x 290 x 29 | 160 x 240 x 29 160 x 250 x 29 165 x 260 x 29 170 x 270 x 29 175 x 280 x 29 175 x 290 x 29 | 175 x 255 x 16 175 x 265 x 16 180 x 275 x 16 185 x 285 x 16 190 x 295 x 16 190 x 305 x 16 |
| HLD/FF 525 HLD/FF 550 HLD/FF 575 HLD/FF 600 | 525 550 575 600 | 205 x 310 x 16 215 x 310 x 16 220 x 315 x 16 230 x 315 x 16 | 225 x 310 x 16 235 x 310 x 16 240 x 315 x 16 250 x 315 x 16 | 245 x 310 x 16 255 x 310 x 16 260 x 315 x 16 270 x 315 x 16 | 180 x 295 x 17 190 x 295 x 17 195 x 300 x 17 205 x 300 x 17 | 180 x 295 x 29 190 x 295 x 29 195 x 300 x 29 205 x 300 x 29 | 180 x 295 x 29 190 x 295 x 29 195 x 300 x 29 205 x 300 x 29 | 195 x 310 x 16 205 x 310 x 16 210 x 315 x 16 220 x 315 x 16 |
Table 3-1 Part Numbers for Herculon Type D Free Float Bearings
Fig 3-2 Dimension Reference Points
Installation
In Concrete Structures
The HLD/FF bearing should be installed in a concrete structure as shown in Fig 3-3.
Fig 3-3

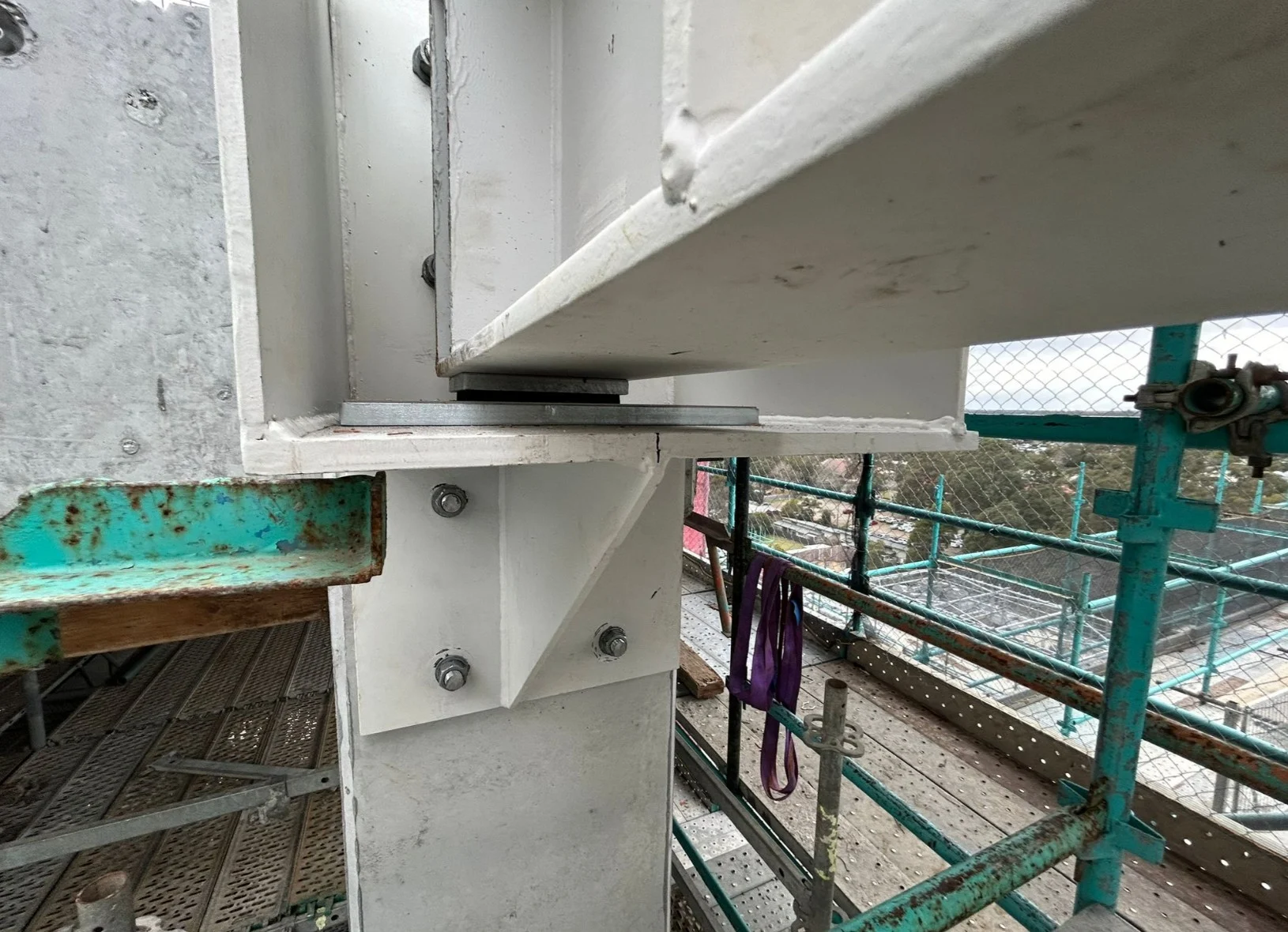

In Steel Structures
HLD/FF bearing should be installed in a steel structure as shown in Fig 3-4.
Fig 3-4
Ordering
The part number is made up of groups of letters and numbers - HLD/FF/175/A/E/G. This part number equates to:
HLD - Herculon Type D
FF - Free Float
175 - Capacity in kN
A - Expansion capacity
E - Rotational capacity
G - Base plate (optional)
