Herculon Modified Type D Bearing – Steel Mounted (HLMD-P)”

Bearing Pads

Herculon Modified Type D Bearing – Steel Mounted (HLMD-P)”

HLMD-P is a modified HLMD bearing with a hot-dipped galvanised top steel plate with threaded studs which allow direct bolting to steelwork. While the standard HLMD bearing is designed for cast in-situ direct pour applications, HLMD-P is designed to suit structural steel installations where the top plate can be mechanically fastened to any UC, UB, PFC or other general steel sections. These bearings pads can be customised to suit a variety of compressive load and movement capacities (seismic and non-seismic).

Installation

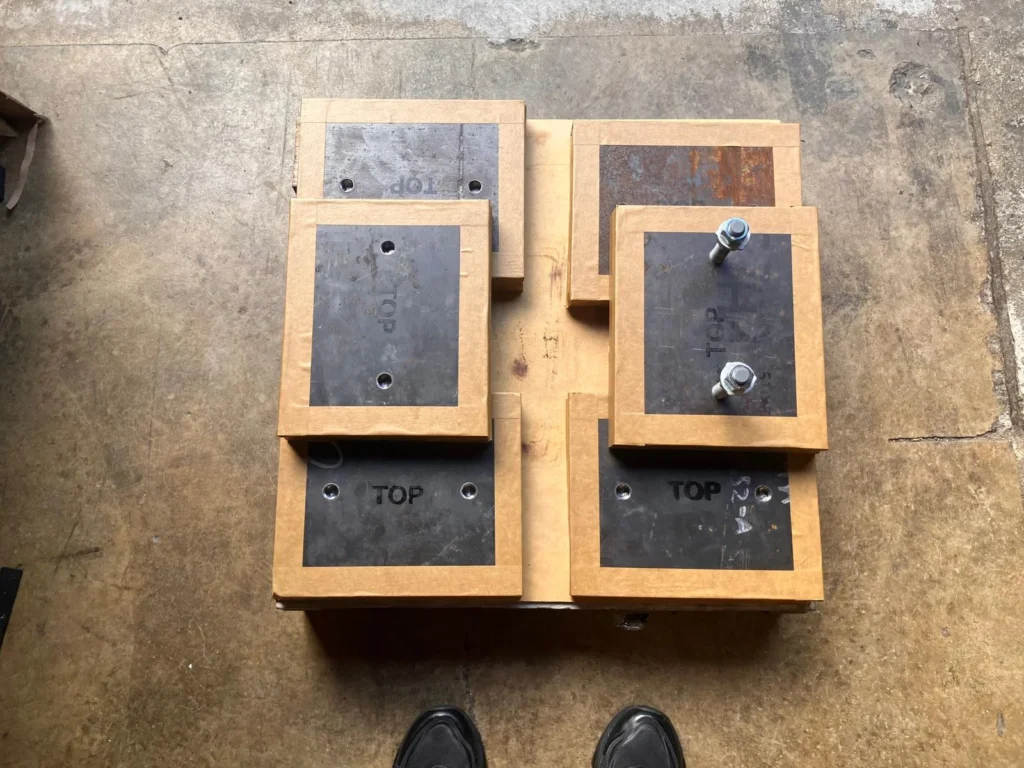

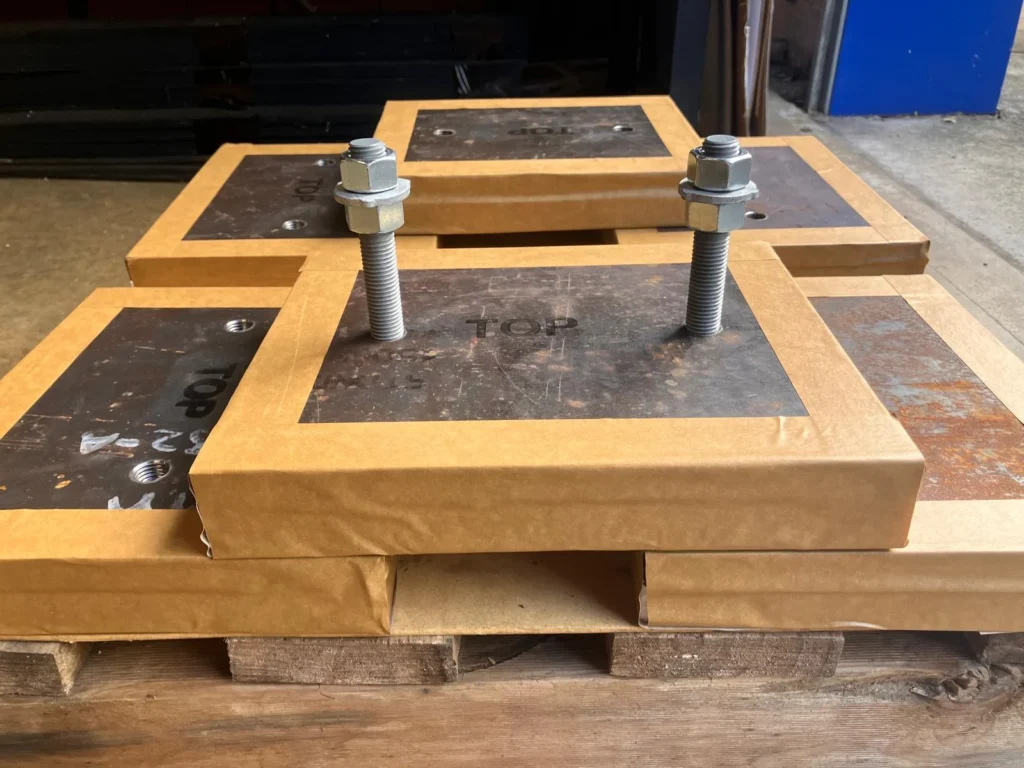

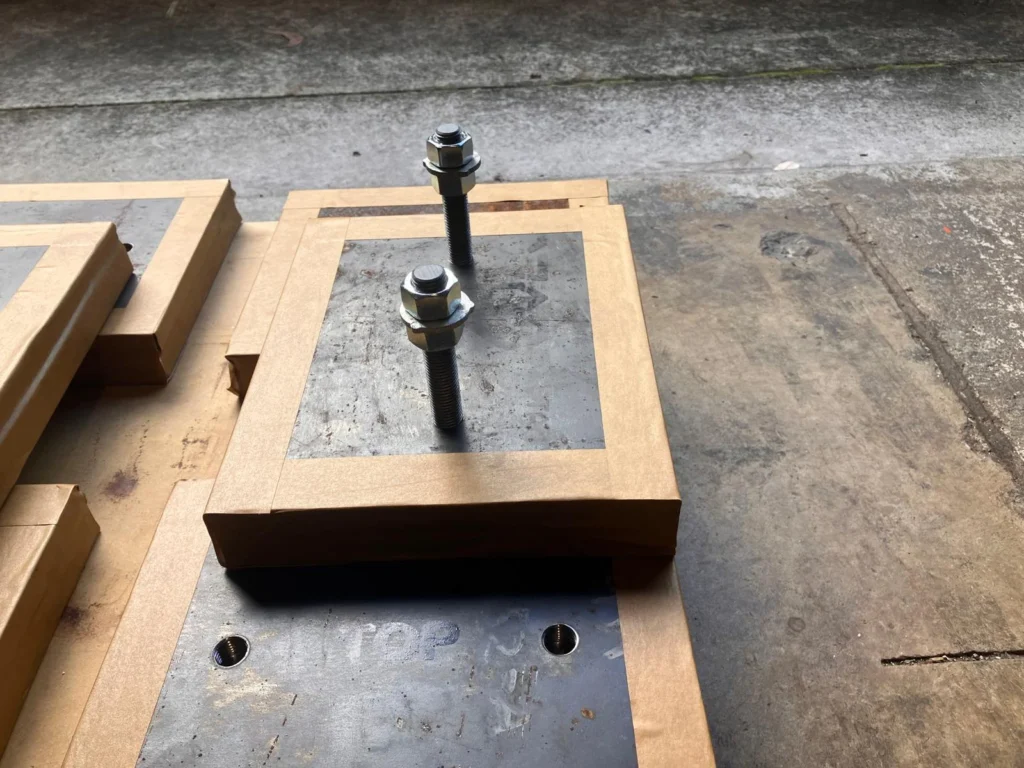

Fig 2-3 - 2-5 shows a HLMD bearing being cast into an in-situ roof slab.

Fig 2-3

Fig 2-5

ORDERING

Table 2-3 (standard) and Table 2-4 (seismic) detail the range of sizes that are available.

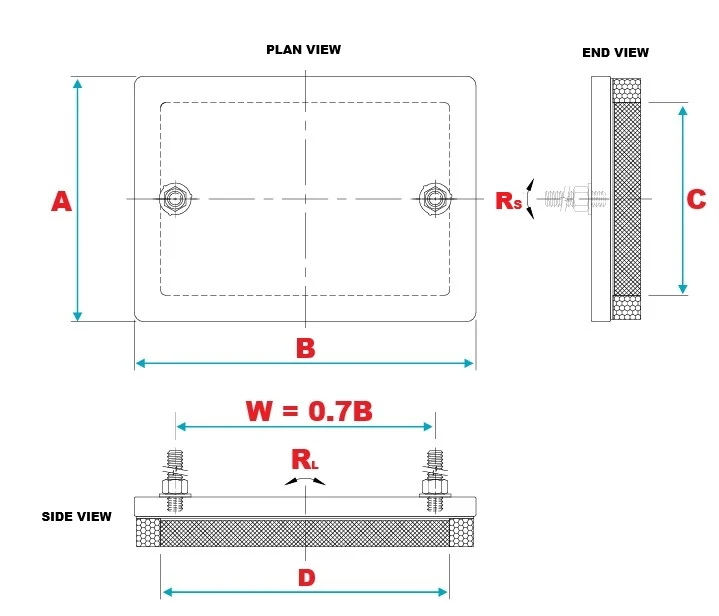

Figure 2-6 provides the dimension reference points reflected in the tables.

Fig 2-4

TABLE

Part No.	Design Load Capacity (kN)	Top Plate	Pad Size	Bearing Height	Movement Capacity (+/-mm)	Rotation Capacity (radians)
	Serviceability (SLS) / Ultimate (ULS)	A X B (mm)	C x D (mm)	H (mm)	Transv. / Long.	R_S / R_L
HLMD-P-100-200/200	100 / 150	480 x 525	80 x 125	35	200 / 200	0.0190 / 0.0120
HLMD-P-200-200/200	200 / 300	520 x 565	120 x 165	35	200 / 200	0.0126 / 0.0090
HLMD-P-300-200/200	300 / 450	550 x 600	150 x 200	41	200 / 200	0.0152 / 0.0114
HLMD-P-400-200/200	400 / 600	580 x 640	165 x 240	41	200 / 200	0.0138 / 0.0095
HLMD-P-500-200/200	500 / 750	580 x 680	180 x 280	41	200 / 200	0.0128 / 0.0090
HLMD-P-600-200/200	600 / 900	630 x 720	200 x 300	41	200 / 200	0.0114 / 0.0070
HLMD-P-800-200/200	800 / 1200	630 x 750	230 x 350	47	200 / 200	0.0128 / 0.0100
HLMD-P-1000-200/200	1000 / 1500	665 x 780	265 x 380	47	200 / 200	0.0100 / 0.0090

Part No.	Design Load Capacity (kN)	Top Plate	Pad Size	Bearing Height	Movement Capacity (+/-mm)	Rotation Capacity (radians)
	Serviceability (SLS) / Ultimate (ULS)	A X B (mm)	C x D (mm)	H (mm)	Transv. / Long.	R_S / R_L
HLMD-P-100-235/25	100 / 150	130 x 175	80 x 125	35	25 / 25	0.0190 / 0.0120
HLMD-P-200-25/25	200 / 300	170 x 215	120 x 165	35	25 / 25	0.0126 / 0.0090
HLMD-P-300-25/25	300 / 450	200 x 250	150 x 200	41	25 / 25	0.0152 / 0.0114
HLMD-P-400-25/25	400 / 600	215 x 290	165 x 240	41	25 / 25	0.0138 / 0.0095
HLMD-P-500-25/25	500 / 750	230 x 330	180 x 280	41	25 / 25	0.0128 / 0.0090
HLMD-P-600-25/25	600 / 900	250 x 350	200 x 300	41	25 / 25	0.0114 / 0.0070
HLMD-P-800-25/25	800 / 1200	280 x 400	230 x 350	47	25 / 25	0.0128 / 0.0100
HLMD-P-1000-25/25	1000 / 1500	315 x 430	265 x 380	47	25 / 25	0.0100 / 0.0090
